7X-50X zoom magnification power with crisp sharp images
Widefield of view* Sturdy all-metal pillar stand
High resolution with great flatness and contrast, giving sharp and clear images
Sharp stereo erect images with a wide field of view
Crystal clear original true-co microscope images
Large working distance Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Adjustable interpupillary distance
Adjustable bracket, lifting range:50mm; easy to operate
Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
Eyepiece: WF10X/22mm High Eyepiece
Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
Magnification:7X-50X
RF4 RF7050-P04 Microscope
Rs.69,600.00

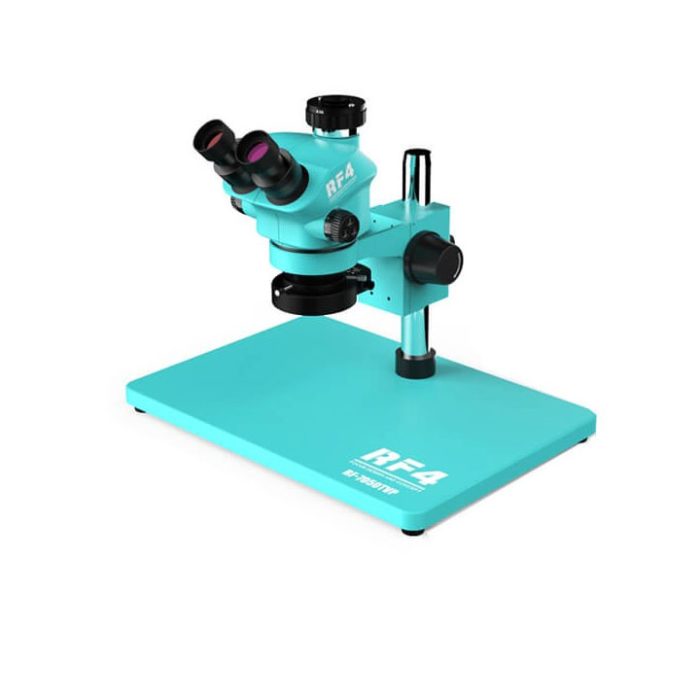

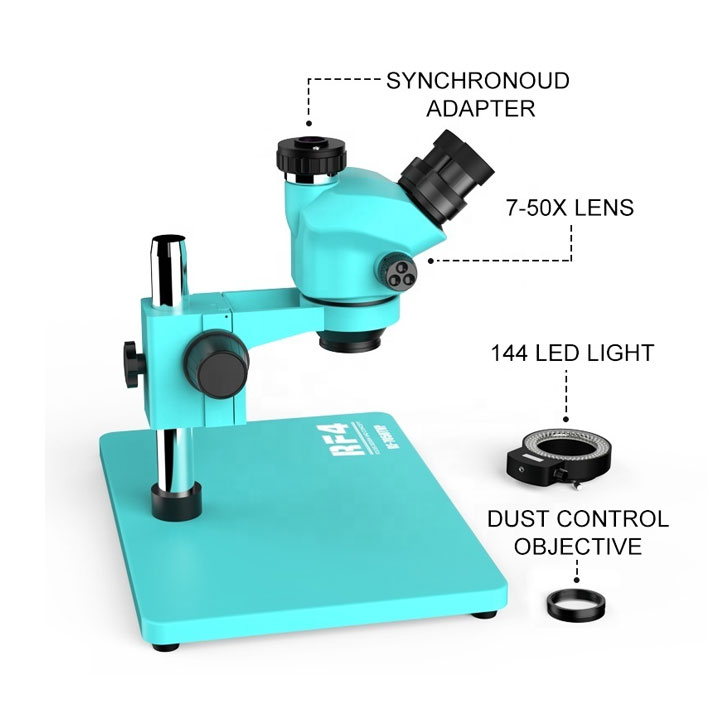

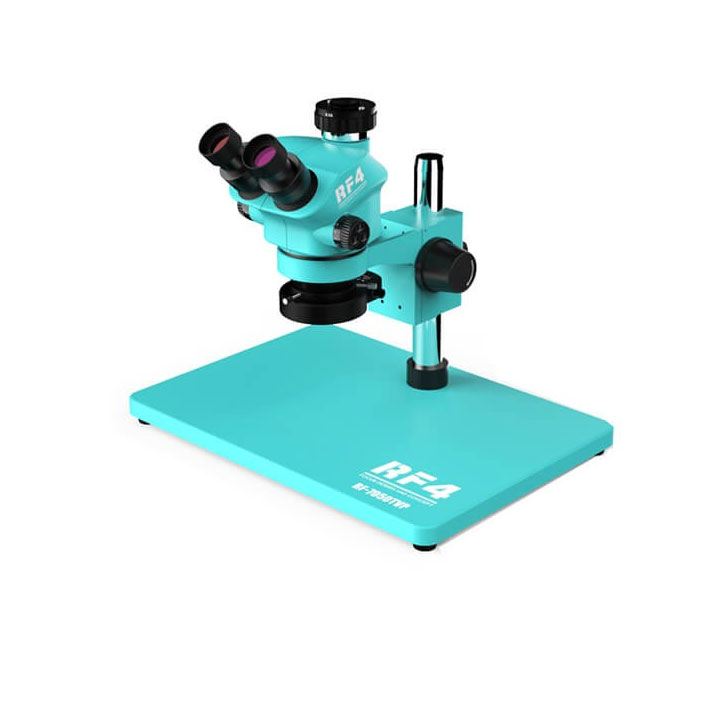

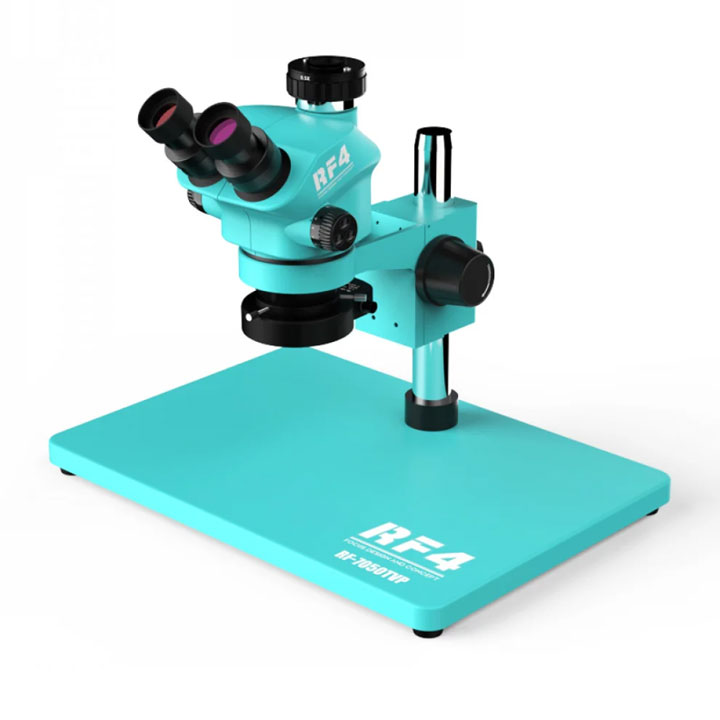

Product Name: Industrial grade trinocular stereo microscope
Product Model: RF 7050-TVP
Product Size: 195*253*225mm
Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
Eyepiece: 0.5X CTV HD electron microscope
Objective Len: 0.7X-50X
Eyepiece: WF10X22 High Eyepiece
Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
Focusing bracket: Adjustable elasticity of focusing hand-wheel, lifting range 50mm
Base Size: 195*256*20mm
LED light source: High brightness cold white light source, can be adjusted freely
Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection
| Weight | 0.5 kg |
|---|---|
| Brand |
RF4 |
